UHB-C-10F Ultra High Bond, Double-Sided Mounting Tape

UHB-C-10F is our Ultra High Bond (UHB) clear 1mm thick acrylic double-sided tape, ideal for the invisible bonding of materials and also has the highest shear strength in our range for maximum loading.

Order Online

APS product code: UHB-C-10F Ultra High Bond Tape

Do you have an account already?

Login here for your discounted price…

Product Details

  • Sold individually
  • Widths of 12mm, 19mm and 25mm
  • Available in standard roll lengths of 33M

Description

UHB-C-10F is an Ultra High Bond (UHB), clear 1mm thick acrylic double-sided mounting tape.

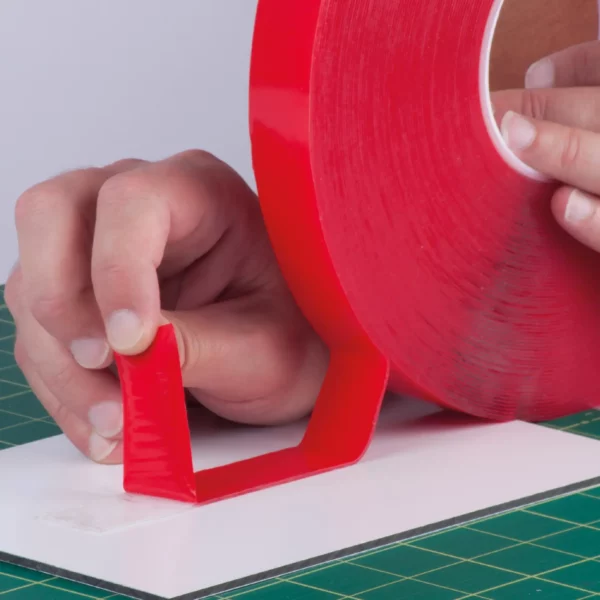

The outside (top) red protective liner of UHB-C-10F clear double-sided sign tape is being peeled away to expose the adhesive on the top side as the tape on the other side (bottom) is adhered in a straight line to a Di-Bond metal sheet on a work bench.

Ideal for the invisible bonding of materials and also has the highest shear strength in our range for maximum loading.

UHB-C-10F sign tape is ideal for the mounting of permanent signs onto a range of smooth or slightly rough surfaces.

Exceptionally high specification in terms of thermal, dynamic and chemical qualities, and can often be used in place of screws, rivets, welding, clips and other permanent fasteners.

The colourless clear UV stable adhesive also makes it ideal for mounting onto glass, acrylic etc.

Used to bond substrates such as metals, sealed wood, glass, plastics, composites and painted surfaces.

Peel adhesion 50 N/25mm after 72 hours and shear strength 48 kg/25mm.

Red PE film liner for easy stripping.

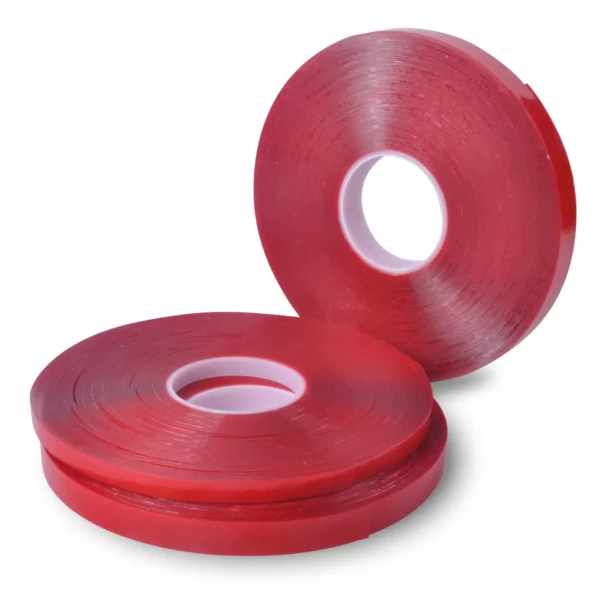

Clear double-sided ultra high bond sign tape, UHB-C-10F, shown in reeled rolls in the three different sizes, two of the reel widths are on their side, horizontally stacked on top of each other, and the third reel is offset to the side standing upright on it's short edge.
