Mactac 9700 Series Polymeric Light Diffusers

  • Sign Media: Windows & Backlit

Two different light diffusing films for illuminated work: 9798-30 is more opaque allowing 30% of light to pass through, while 9798-60 allows 60%, or twice as much, light through the film.

Order Online

APS product code: 9798.XX

Do you have an account already?

Login here for your discounted price…

Login

Already got an account? Please log in to view your pricing.

Product Total: 8.43
Add to favourites

Product Details

  • 1D polymeric
  • 2 matt diffusers
  • External life of 5-7 years
  • Solvent permanent acrylic adhesive
  • 135gsm backprinted kraft liner
  • Width of 1230mm
  • Available in standard roll lengths of 10M, 25M, 50M and ‘buy the metre’

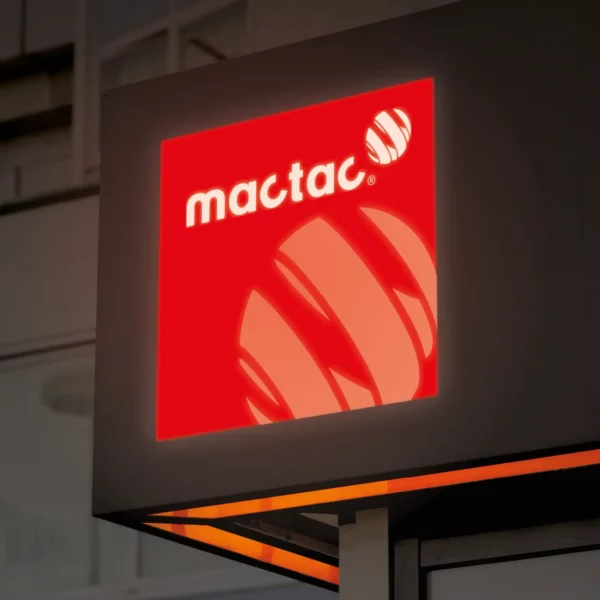

Illuminated backlit sign on building frontage in night light using Mactac 9798-30 and 9798-60 white diffuser film vinyls to block out 30% and 60% of the backlight, creating an interesting effect by screening out only a percentage of the light.

Description

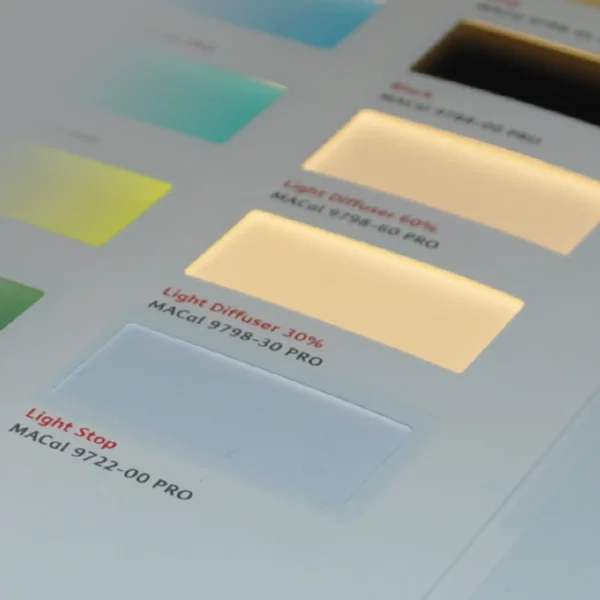

The Mactac 9700 Series Polymeric Light Diffusers range offers two different light diffusing films for illuminated work.

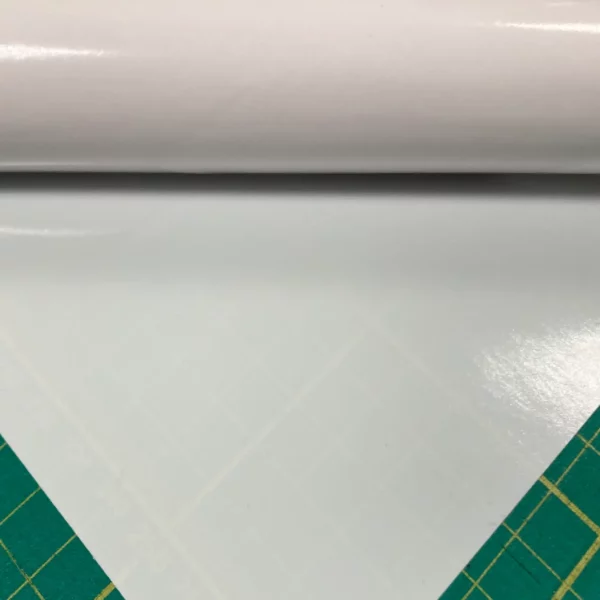

9798-30 is more opaque allowing 30% of light to pass through.

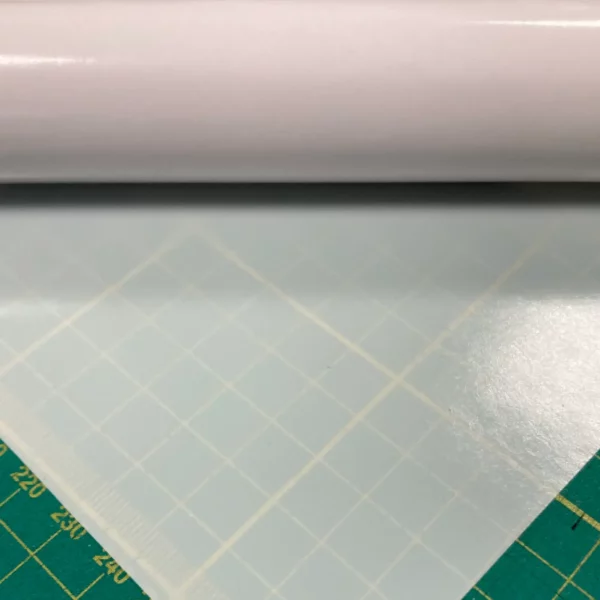

9798-60 allows 60%, or twice as much, light through the film.

» The 9700 Series also offers 9700 Series Polymeric Translucent matt coloured films and 9722.00 Polymeric Light Stop.

MACal 9798-30 Pro and 9798-60 Pro are translucent white/non-coloured vinyls which allow 30% and 60%, respectively, of light to pass through the vinyl.

The face film is a matt finished cadmium-free vinyl coated with a durable permanent acrylic adhesive, with excellent wet out characteristics for clarity. The product has good dimensional stability and is designed for excellent cutting and weeding.

9798-30 Pro and 9798-60 Pro are specifically designed for backlit applications in combination with MACal 9700 Pro translucent colours and MACal 9722-00 Pro Light Stop vinyl.

These films give a more homogenous light diffusion from the light box.

They modify the “night” colors of the MACal 9700 Pro colours, creating different shades of colour in night time illumination.
