Nu-Coat FlooR11 M77-P

190µ textured laminating PVC film suitable for both internal and external applications with a service life of around 6 months internally and 3 months externally. For lamination over Solvent, Latex and UV inks. Slip rated to DIN EN 13036-4 equivalent to an R11 rating.

Order Online

APS product code: FlooR11 M77-P

Do you have an account already?

Login here for your discounted price…

Product Details

  • SOLVENT, LATEX and UV
  • 1D monomeric
  • Internal life of 6 months, external 3 months
  • PermPLUS permanent clear UV polyacrylate adhesive
  • 135gsm backprinted kraft liner
  • Self-extinguishing
  • Width of 1370mm
  • Available in standard roll lengths of 25M and ‘buy the metre’
  • EN-13036 rated R11 using Pendulum Test Method

Description

FlooR11 M77-P textured R11 slip-rated floor graphics laminate is suitable for both internal and external applications.

FlooR11 M77-P is a 190µ textured laminating PVC film for floor graphics.

Slip rated to DIN EN 13036-4 with a dry PTV of 69 and a wet PTV of 42, equivalent to an R11 rating.

Nu-Coat’s FlooR11 is suitable for both internal and external applications with a service life of around 6 months internally and 3 months externally, dependent on traffic.

FlooR11 can be used in external transitional areas that can occasionally be wet, such as entrances areas to shopping centres.

» For easy reference we have created an illustrative graph to show the recorded PTV’s (Pendulum Test Values) / wear durability of FlooR10 and FlooR11 over a period of 13 months.

Nu-Coat also offer FlooR10, an R10 slip rated floor laminate suitable for internal and external surfaces.

The FlooR11 slip rated floor graphics laminate is recommended for use with paired print vinyls from the Nu-Coat ‘M’ Series print vinyls rangethe ‘M’ Series print vinyls offer four adhesive options that are suitable for applications to a wide range of selective internal and external floor surfaces.

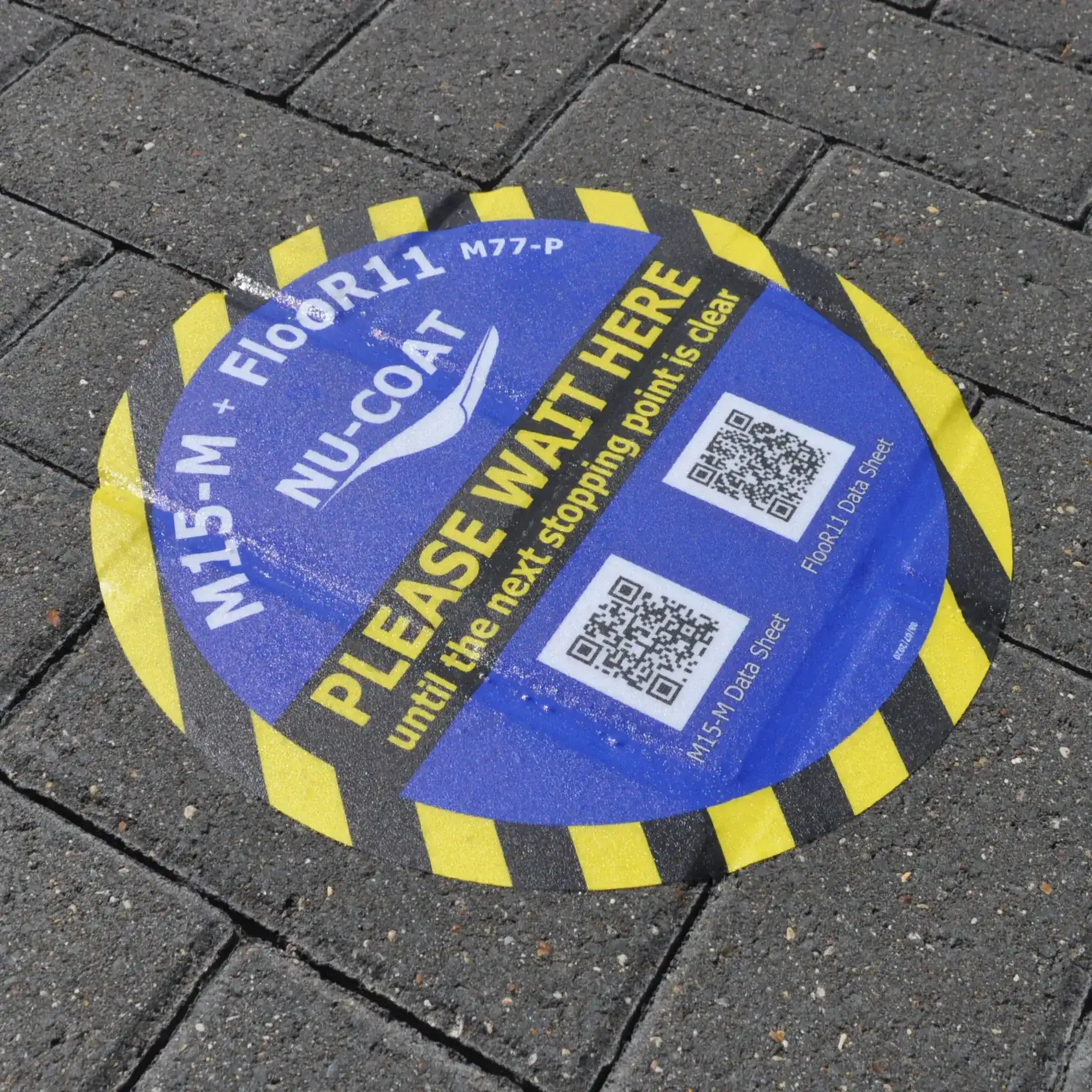

A blue, yellow and black printed wayfinding graphic which has been laminated with a textured FlooR11 slip rated film and applied onto rough dark tarmac outside.

For a general summary of Slip Ratings for floor laminate products read our Summary Of Slip Ratings article.


» We offer a range of Floor Graphic Laminates for both Internal and External applications.
