NU-COAT FlooR10 M73-P

Fire rated, 100µ textured laminating PVC film for internal applications with a service life of around 3 months dependent on traffic, also slip rated to DIN EN 13036-4 and is borderline for external use. For lamination over Solvent, Latex and UV inks. Slip rated to DIN 51130 anti-slip group R10. Suitable for both wall and floor applications.

Order Online

APS product code: FlooR10 M73-P

Do you have an account already?

Login here for your discounted price…

Product Details

  • SOLVENT, LATEX and UV
  • 1D monomeric
  • Internal life of 3 months
  • PermPLUS permanent clear UV polyacrylate adhesive
  • 135gsm backprinted kraft liner
  • Fire rated EN13501-1
  • Width of 1370mm
  • Available in standard roll lengths of 25M, 50M and ‘buy the metre’
  • DIN 51130 slip rated R10

Description

FlooR10 M73-P is an R10 anti-slip floor graphics laminate rated to DIN 51130, and is also popularly used for wall graphics

FlooR10 is a fire rated, 100µ textured laminating PVC film for floor graphics.

Rated to DIN 51130 anti-slip group R10.

Slip rated to DIN EN 13036-4 with a dry PTV (Pendulum Test Value) of 78 and a wet PTV of 38 means this floor laminate is borderline for external use.

FlooR10 is suitable for internal floor applications with a service life of around 3 months dependent on traffic.

FlooR10 M73-P is also often used as a scuff resistant laminate for printed wall graphics and is fire rated EN13501-1.

The unique VOC free adhesive is ideal for large internal graphics. It is the recommended textured laminate for printable Scenic Wall M16-H and the airXit version M16-H-X.

» For easy reference we have created an illustrative graph to show the recorded PTV’s (Pendulum Test Values) / wear durability of FlooR10 and FlooR11 over a period of 13 months.

NU-COAT also offer FlooR11, an R11 slip rated floor laminate suitable for internal and external surfaces.

The FlooR10 slip rated floor graphics laminate is recommended for use with paired print vinyls from the Nu-Coat ‘M’ Series print vinyls rangethe ‘M’ Series print vinyls offer four adhesive options that are suitable for applications to a wide range of selective internal and external floor surfaces.

For a general summary of Slip Ratings for floor laminate products read our Summary Of Slip Ratings article.

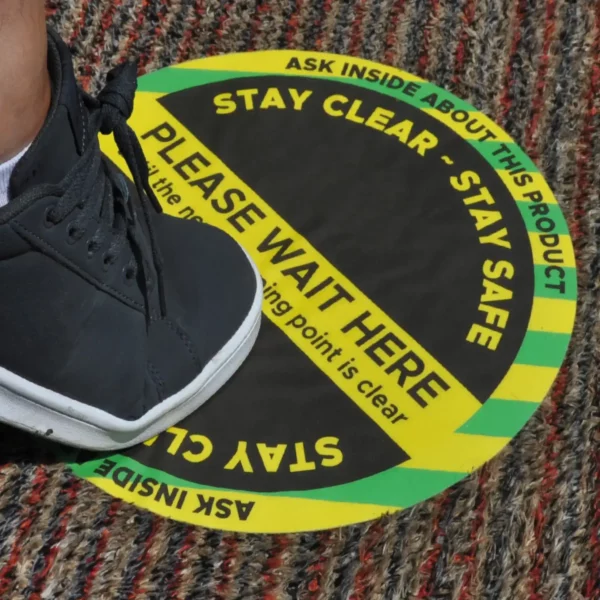

A green, yellow and black circle shaped internal floor graphic stuck to a carpet and being walked on.

M73-P is also one of the recommended laminates for the NU-COAT Scenic Wall range of wall coverings.


» We offer a range of Floor Graphic Laminates for both Internal and External applications.

Recommended Products

190µ textured laminating PVC film suitable for both internal and external applications with a service life of around 6 months internally and 3 months externally. For lamination over Solvent, Latex and UV inks. Slip rated to DIN EN 13036-4 equivalent to an R11 rating.
150µ matt structured polymeric PVC film - Our most durable laminate for internal floor graphics with an expected outdoor life of 3 months when used with Mactac's StreetRap print media and the finished product conforms well to exterior uneven surfaces such as concrete pavement and bitumen. For lamination over Solvent, Latex and UV inks. Slip rated R11. Fire rated BS476 Class 0 & EN13501.
100µ matt grain textured PVC laminate for protection of floor graphics up to 3 months internally. For lamination over Solvent, Latex and UV inks. Slip rated R9, DIN EN 13036-4 and approved to ASTM Friction Test C-1028-2007. Fire rated EN13501-1.
125µ grain textured semi-matt PVC laminate specially designed to protect indoor floor graphics for up to 6 months. Helps eliminate glare while providing a sophisticated look for promotions and advertising. For lamination over Solvent, Latex and UV inks. Slip rated R9. Fire rated EN13501-1.
