Mactac – LUV 6301

100µ matt grain textured PVC laminate for protection of floor graphics up to 3 months internally. For lamination over Solvent, Latex and UV inks. Slip rated R9, DIN EN 13036-4 and approved to ASTM Friction Test C-1028-2007. Fire rated EN13501-1.

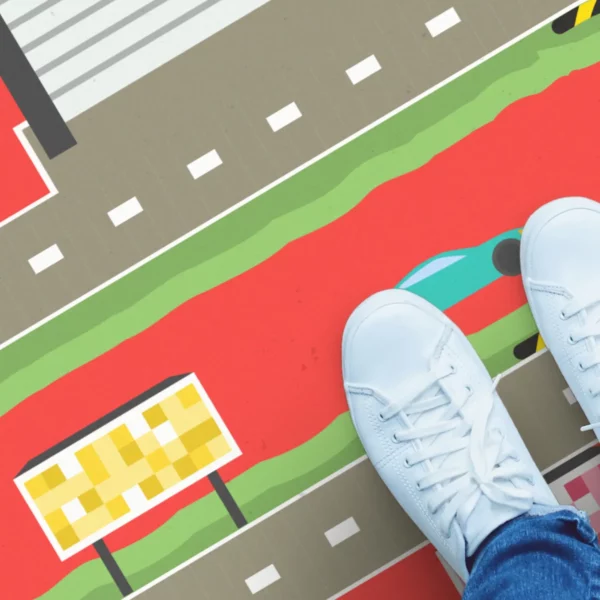

Mactac LUV 6301 internal floor print laminate gives it's slip-resistant properties to a childs printed play matt design, safely protecting the printed floor graphic as well as anyone walking over the flooring from slipping.

Promotional floor graphics protected with a slip-rated floor print laminate and used for this central access area in a large shopping retail mall space.

Product Details

For SOLVENT, LATEX and UV prints
Internal life of 3 months
Solvent permanent acrylic adhesive
100gsm backprinted kraft liner
Fire rated EN13501-1
Widths of 1050mm, 1370mm and 1524mm
Available in standard roll lengths of 50M and ‘buy the metre’
DIN 51130 rated R9, DIN EN 13036-4 and ASTM C-1028-2007

Order Online

APS product code: LUV 6301

Do you have an account already?

Log-in here for your discounted price, or continue as a guest to place orders

Select product

Clear

Do you require slitting?First three slits £8; each additional slit £3.

No Yes

Add to favourites

Product Details

For SOLVENT, LATEX and UV prints
Internal life of 3 months
Solvent permanent acrylic adhesive
100gsm backprinted kraft liner
Fire rated EN13501-1
Widths of 1050mm, 1370mm and 1524mm
Available in standard roll lengths of 50M and ‘buy the metre’
DIN 51130 rated R9, DIN EN 13036-4 and ASTM C-1028-2007

Description

Mactac’s LUV 6301 is an R9 rated slip-resistant, matt grain textured PVC print laminate for floor graphics.

LUV 6301 floor print laminate from Mactac is a 100µ matt grain textured PVC and approved for slip resistance.

R9 slip rating (DIN 51130) as well as being approved ASTM Friction Test C-1028-2007 for slip resistance.

LUV 6301 features a high tack adhesive for adhesion to textured UV prints, the sandy structure helps enhance the print and eliminate glare.

Internal durability up to three months.

LUV 6301 is now slip rated to DIN EN 13036-4 with a dry PTV of >96.

For a general summary of Slip Ratings for floor laminate products read our Summary Of Slip Ratings article.

» We offer a range of Floor Graphic Laminates for both Internal and External applications.

Downloads

Technical Data Sheet

Fire Certificate

Slip Test Certificate (DIN 51130)

Slip Test Certificate (DIN EN13036-4 & EN14904)

Mactac Anti-Slip Certification Guide

Mactac Floor Graphics Application Guide
